Partial Schematic

• GofTrace has powerful engine to extract logic cone.
• Feasible cell loading.

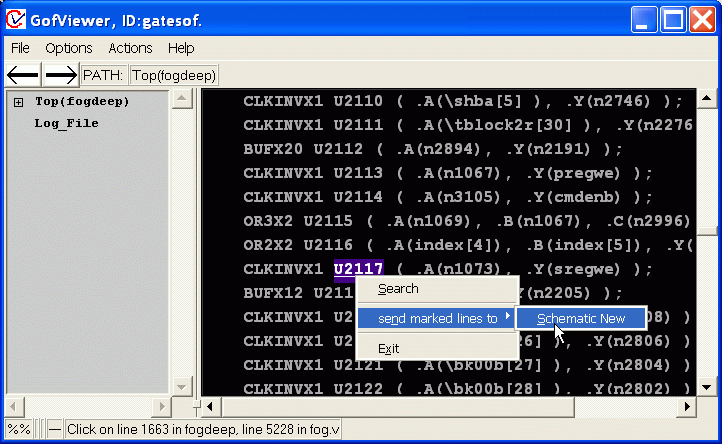

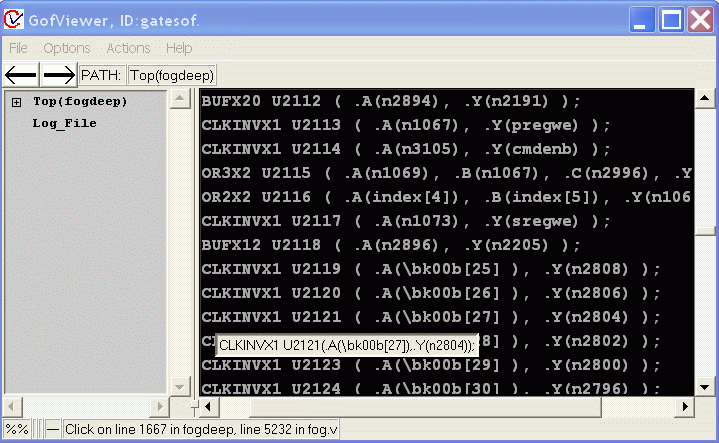

• Load cell into GofTrace Schematic from GofViewer netlist viewer.

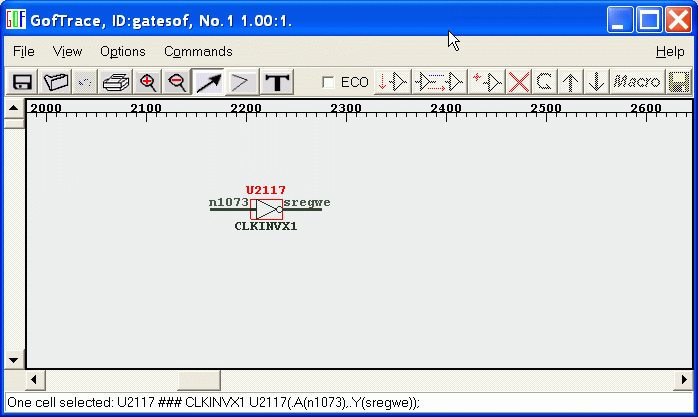

• The Cell appears on the GofTrace Schematic Canvas.

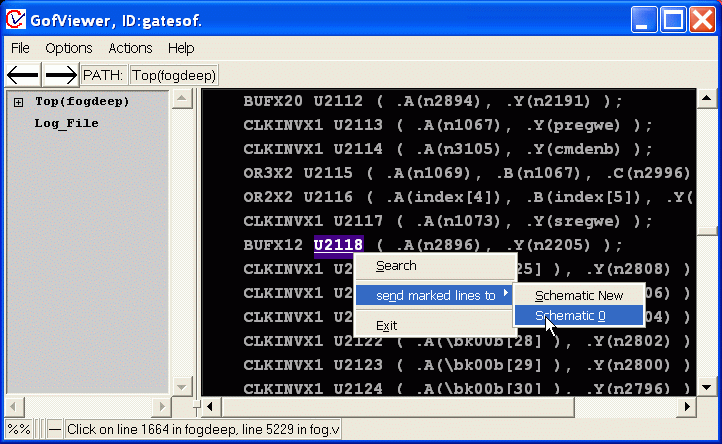

• You can load more cells from GofViewer by 'send' command.

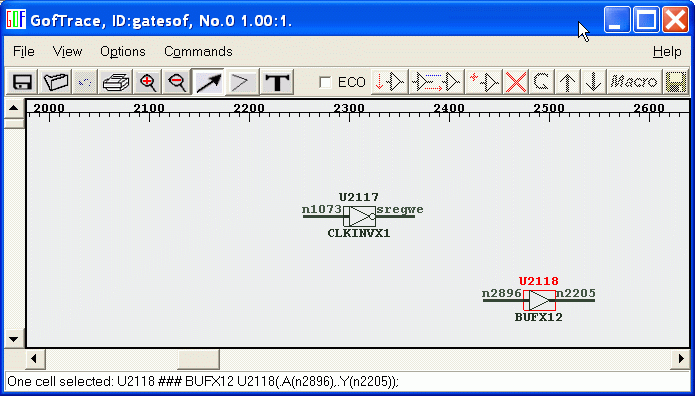

• The U2188 appears on the Schematic.



• Do Some Fanin Fanout Trace.

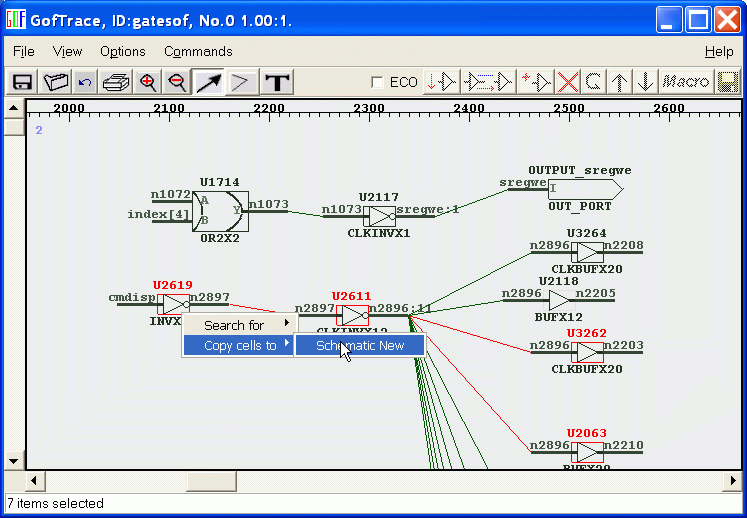

• Select gates and connections as highlighted below. Copy the highlighted circuit to a new schematic.

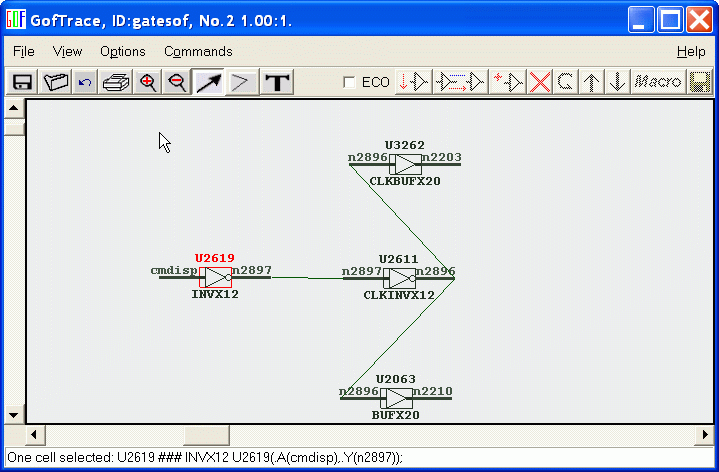

• The gates and connections in the circuit appear in a new schematic. You can do gates position adjustment.

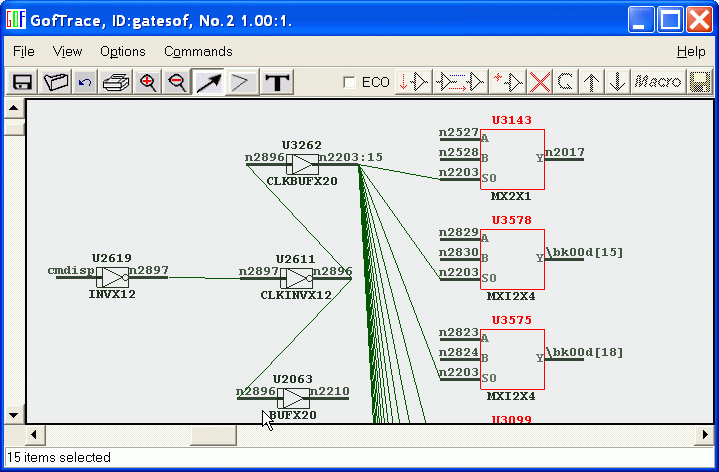

• In the schematic, you can do more forward trace or backward trace.



• Or drag and drop a cell from GofViewer window.  Press Mouse-Middle-Button on one cell move and release on the GofTrace Schematic Canvas.



• The symbol shows the drag and drop cell is on the Schematic.

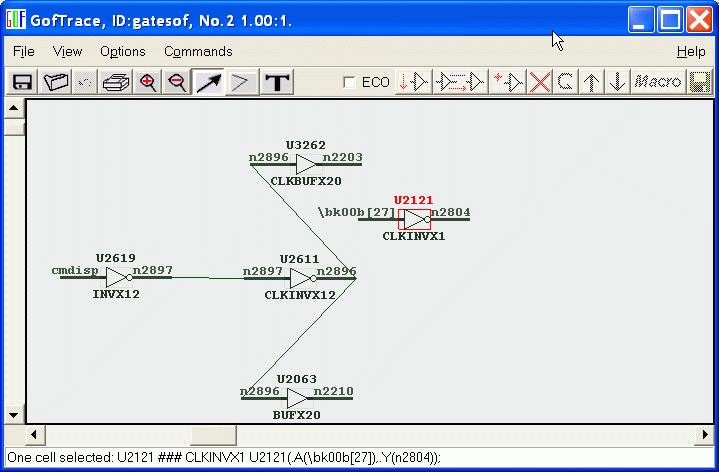

• Release Mouse-Middle-Button, the gate appears on the Schematic.
