List gate and load gate

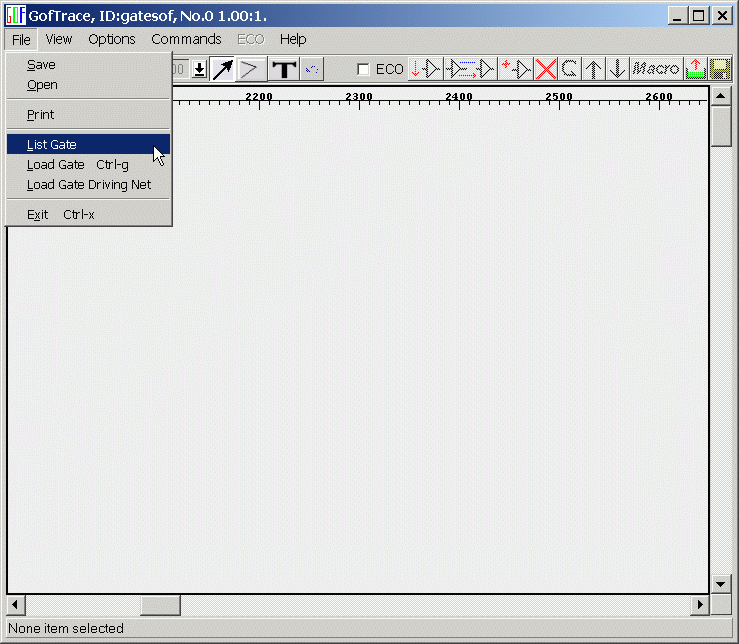

Select menu File->List Gate

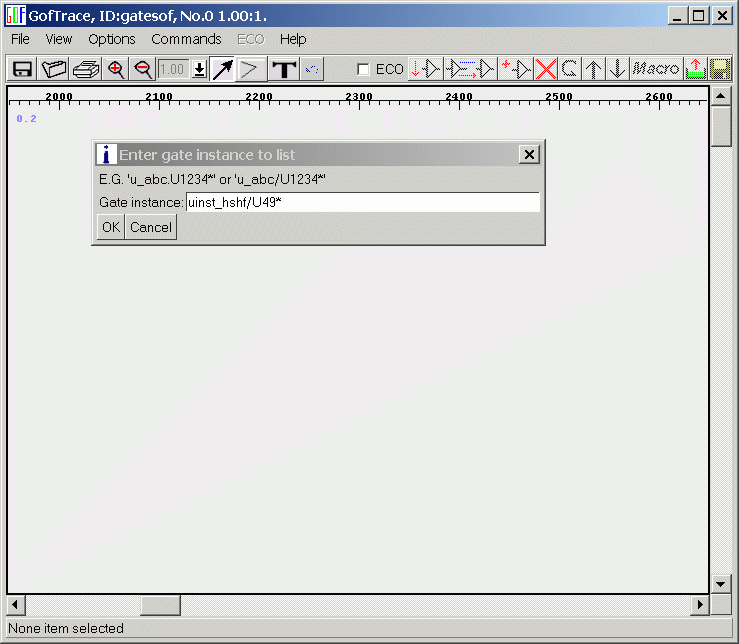

Type in the instance name. Path is separated by '.' or '/'. Wild card is acceptable. like 'U1234*'

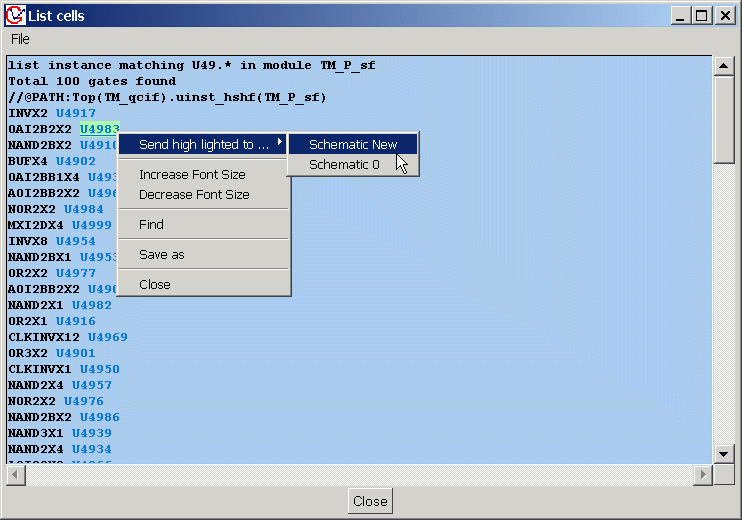

All instances matching the name are listed in a new window.

In the window, select a instance and right click mouse-right-button to do some interactions.

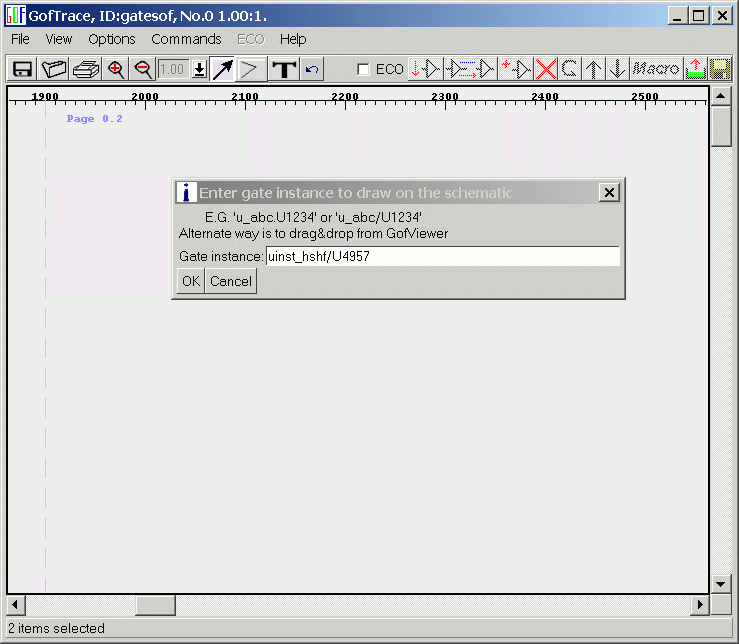

Get gate has similar process. Enter instance name with path separated by '.' or '/'.

The instance is drawn on the schematic.

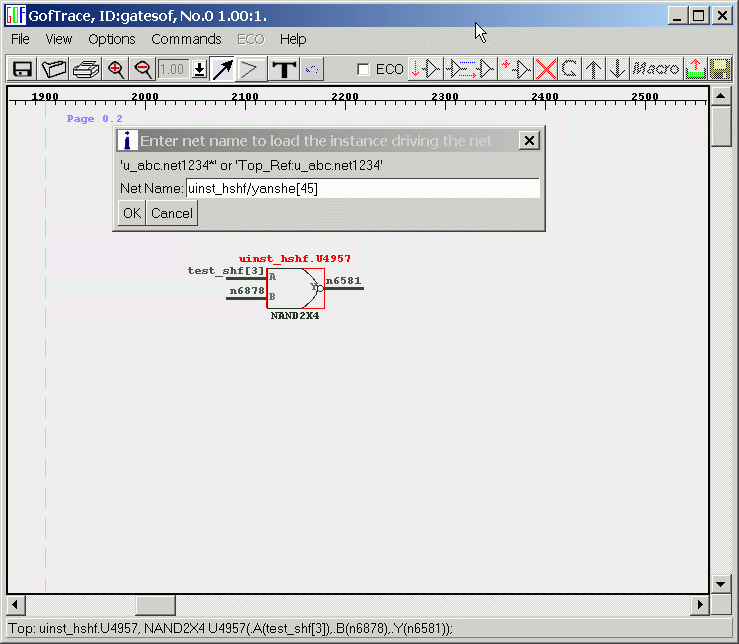

Select menu File->'Load Gate Driving Net' to load in the gate driving the specific net.

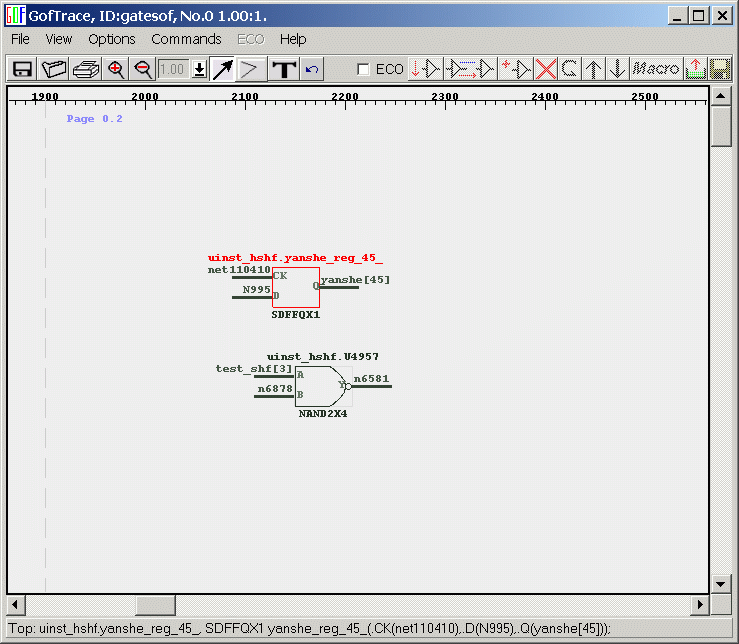

The gate driving net yanshe[45] is drawn on the schematic.
