Abstract

This use case shows how to use Gates On the Fly to fix datapath bugs. Datapath is much more complex than control logic, and manually fixing datapath bugs is more difficult than fixing control logic bugs. In this case, an ECO flow is described to fix datapath bugs by Gates On the Fly.

Case 1: Variable coefficients FIR filter

This is a variable coefficients FIR filter with 6 taps. A bug is introduced by missing the rounding logic.

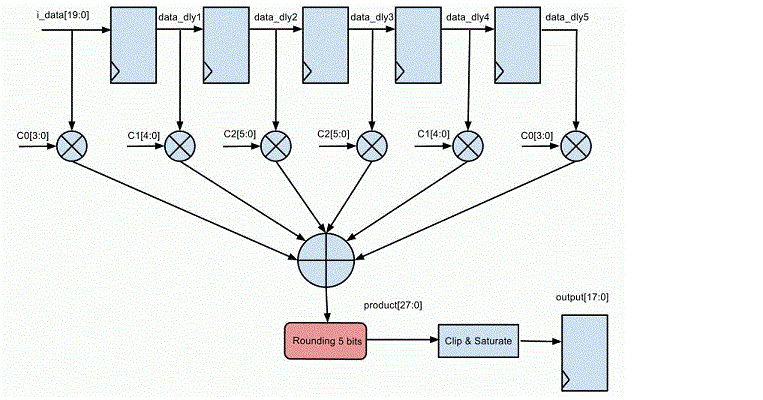

Figure 1 Variable coefficients FIR filter



RTL code changes

...
parameter WIDTH = 20;
parameter WC = 5;

always @(*) data_dly0 = i_data;
always @(posedge clk) begin
  data_dly1                        <= data_dly0;
  data_dly2                        <= data_dly1;
  data_dly3                        <= data_dly2;
  data_dly4                        <= data_dly3;
  data_dly5                        <= data_dly4;
end
wire signed [WIDTH:0] preadd0       = data_dly0 + data_dly5;
wire signed [WIDTH:0] preadd1       = data_dly1 + data_dly4;
wire signed [WIDTH:0] preadd2       = data_dly2 + data_dly3;
wire signed [WIDTH+WC:0] m0 =  preadd0 * c0;
wire signed [WIDTH+WC:0] m1 =  preadd1 * c1;
wire signed [WIDTH+WC:0] m2 =  preadd2 * c2;
wire signed [WIDTH+WC+2:0] product    = m0 + m1 + m2;
// Round logic is missed in the following line
wire [WIDTH+WC+2:0] rproduct   = product;
// '+16' part is to add the rounding logic
//wire [WIDTH+WC+2:0] rproduct   = product + 16;
wire [WIDTH-3:0]        sat_out;

saturate #(.BW_IN(WIDTH+1), .BW_OUT(WIDTH-2)) u_saturate(.sat_in(rproduct[WIDTH+5:5]),
           .sat_out(sat_out[WIDTH-3:0]));
reg [WIDTH-3:0]  pout;
always @(posedge clk) pout <= sat_out;
...

Synthesis and Logic Equivalence Check

The implementation netlist with bug is saved in 'imp_fir.v'.

Synthesize the RTL code with ECO changes with the same constraint and save the result to 'ref_fir.v'.

Logic Equivalence Check is run on 'imp_fir.v' vs 'ref_fir.v'. The result shows '\pout_reg[0] ' to '\pout_reg[17] ' registers have mismatches.

GOF ECO and result comparison

A GofCall Perl script is created to read in the implementation netlist and reference netlist, 'fix_desing' API finds and fixes the non-equivalent modules.

The initial logic cone has 708 gates. GOF adds 19 gates into the logic to fix the bug.

Replacing the whole logic cone 708 gates would cause big disturbance in back end flow and in post-mask flow it's impossible to find enough spare gates

GofCall Automatic ECO script

# GofCall ECO script, run_dpath_eco.pl
use strict;
undo_eco;  # Discard previous ECO operations
# Setup ECO name
setup_eco("dpath_eco");
read_library("art.90nm.lib"); # Read in standard library
read_design("-ref", "ref_fir.v");  # Read in the Reference Netlist
read_design("-imp", "imp_fir.v");  # Read in the implementation Netlist Which is under ECO
set_top("dpath");  # Set the top module that ECO is working on
# Fix the modified module 'dpath' and its sub-modules
fix_design;

# Metal only ECO commands can be insert here
report_eco();   # ECO report
write_verilog("eco_dpath.v"); # Write out ECO result in Verilog

Metal only ECO

In post-mask ECO, only metal layers can be modified. Enough spare gates should be implemented to make metal only eco successful. The following lines are added in the above GofCall script to do metal only ECO

read_def("imp_fir.def");   # Read Design Exchange Format file, optional
# Specify spare cell pattern and add freed gates in the current ECO into spare gate list
get_spare_cells("u_spare*/*spare_gates*");
map_spare_cells;

The database has spare gate types, 'NOR', 'NAND', 'MUX' and invert. After mapping the 19 new gates into spare gate types, GOF uses 78 spare gates to implement the metal only ECO.

Case 2: Increase coefficients bit width

In this case, one coefficient has to increase width by one bit. The following figure shows coefficient C0 has bit width increased by one and rounding is added as the previous example. The change spots have been marked in 'red'.

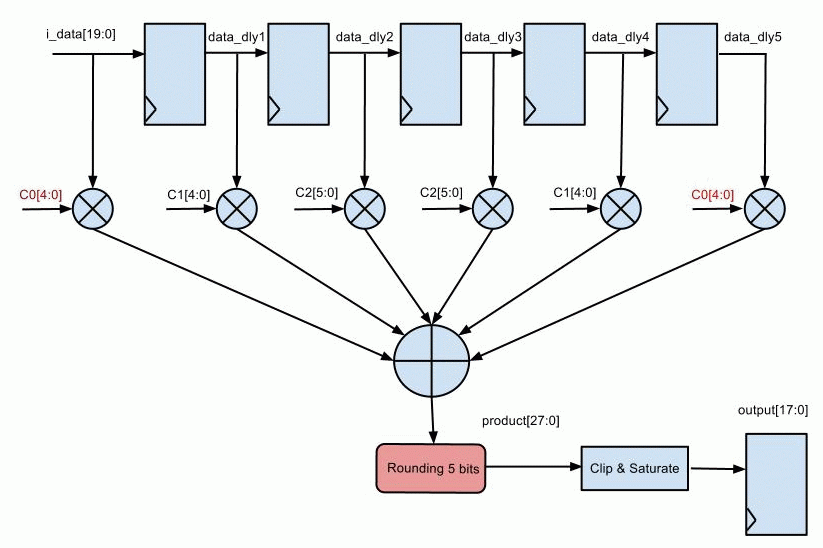

Figure 2. Increase bit width of coefficient

ECO and result comparison

The same GofCall script above can be used on this case. Input port C0 bit width will increase by one bit automatically after ECO.

The initial logic cone has 759 gates. GOF adds 120 gates into the logic to fix the bug.

Case 3: Fixed coefficients FIR filter

Manual ECO is possible only in some special cases like fixed coefficients. For example, Figure 2, the FIR has fixed coefficients with value c0 = -2, c1 = 3, and c2 = 15.

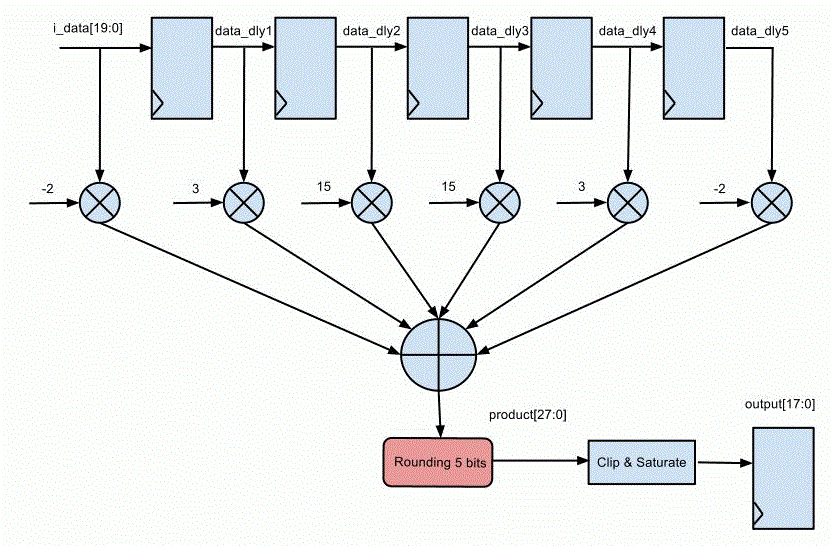

Figure 3. Fixed coefficients FIR filter





Since

c0 + c1 + c2 = -2 + 3 + 15 = 16
So
preadd0*c0 + preadd1*c1 + preadd2*c2 + 16 = (preadd0+2'sb1)*c0 + (preadd1+2'sb1)*c1 + (preadd2+2'sb1)*c2

So if the adders 'preadd0', 'preadd1' and 'preadd2' can be found and added carrier-in bit, a manual ECO is possible

Detail RTL code changes

...
parameter WIDTH = 20;
parameter WC = 5;

always @(*) data_dly0 = i_data;
always @(posedge clk) begin
  data_dly1                        <= data_dly0;
  data_dly2                        <= data_dly1;
  data_dly3                        <= data_dly2;
  data_dly4                        <= data_dly3;
  data_dly5                        <= data_dly4;
end
wire signed [WIDTH:0] preadd0       = data_dly0 + data_dly5 + 2'sb1;
wire signed [WIDTH:0] preadd1       = data_dly1 + data_dly4 + 2'sb1;
wire signed [WIDTH:0] preadd2       = data_dly2 + data_dly3 + 2'sb1;
wire signed [WIDTH+WC:0] m0 =  preadd0 * c0;
wire signed [WIDTH+WC:0] m1 =  preadd1 * c1;
wire signed [WIDTH+WC:0] m2 =  preadd2 * c2;
wire signed [WIDTH+WC+2:0] product    = m0 + m1 + m2;
wire [WIDTH+WC+2:0] rproduct   = product;

wire [WIDTH-3:0]        sat_out;

saturate #(.BW_IN(WIDTH+1), .BW_OUT(WIDTH-2)) u_saturate(.sat_in(rproduct[WIDTH+5:5]),
           .sat_out(sat_out[WIDTH-3:0]));
reg [WIDTH-3:0]  pout;
always @(posedge clk) pout <= sat_out;
...

Use GofTrace schematic feature

GofTrace schematic window can be enabled in command line, or use 'start_gui' to launch GUI window from the script.

Command line is:

gof -lib art.90nm.lib -imp imp_fir.v -ref ref_fir.v

Launch GUI window from the script

read_library("art.90nm.lib"); # Read in standard library
read_design("-ref", "ref_fir.v");  # Read in the Reference Netlist
read_design("-imp", "imp_fir.v");  # Read in the implementation Netlist Which is under ECO
start_gui;  # Enable GUI window

Find register data_dly*_reg[0] on GofTrace Schematic and trace back and forth by mouse-middle-button clicking on the gate pins

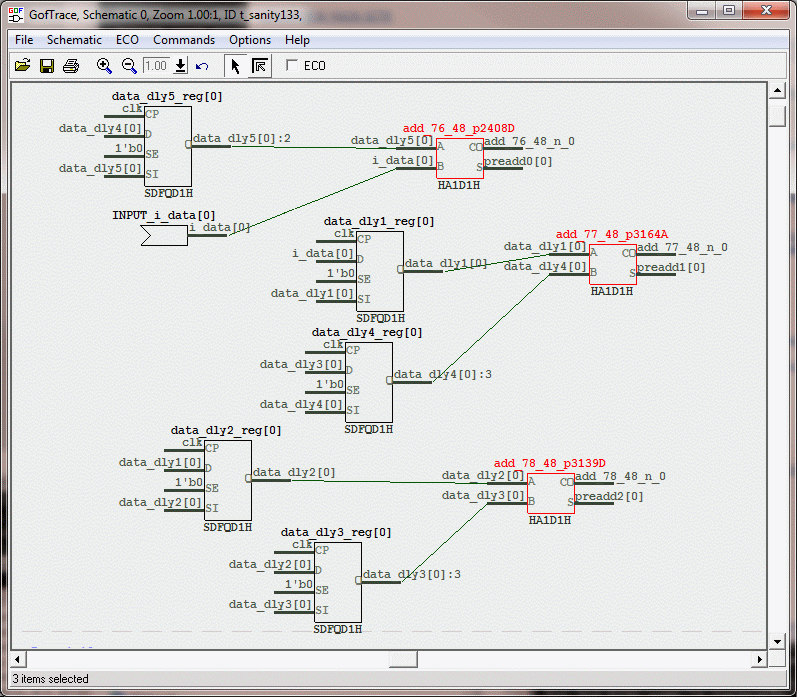

Figure 4. Three Half-Adders under ECO

The new value of 'S' and 'CO' become

new_S = A ^ B ^ 1 = !S

new_CO = A & B + A & 1 + B & 1 = A + B

So an inverter should be inserted to the 'S' path. And a new 'OR' gate with A/B driven by the Half-Adder inputs drives the original 'CO' fanouts

Trace the output pins of the Half-Adders as shown in Figure 5.

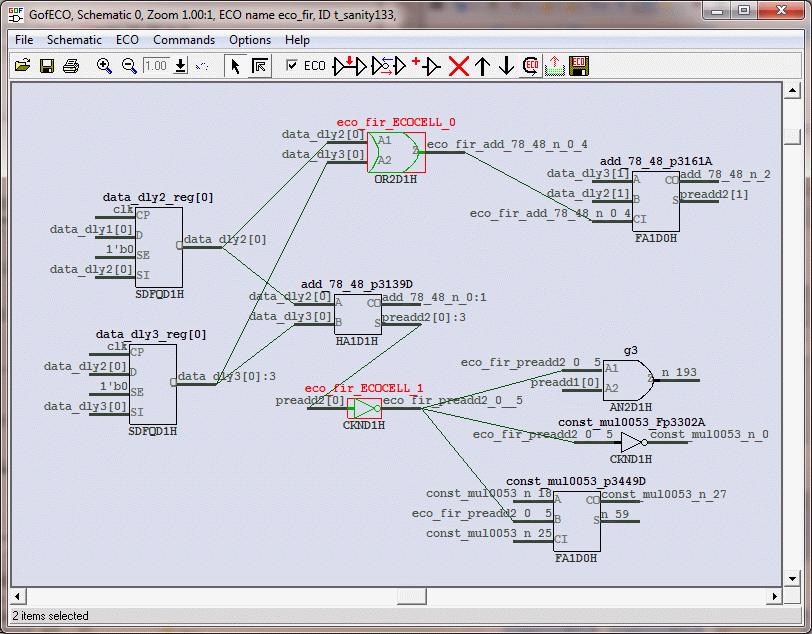

Figure 5. Trace output pins for ECO

The ECO steps for one Half-Adder (add_78_48_p3139D) are:

  • Click Mouse-Left-Button to select 'add_78_48_n_0'
  • Click 'Insert Gates into connections ECO button' which is the first of ECO buttons
  • Pick 'OR' type gate 'OR2D1H'. Leave input pins floating
  • Press Mouse-Middle-Button on 'eco_fir_ECOCELL_0' A/B pins and move to the driving register output pins to connect up the wires
  • Press 'Ctrl' key and click Mouse-Left-Button to select three lines of 'preadd2[0]'
  • Click 'Insert Gates into connections ECO button' and pick an inverter

One Half-Adder after ECO fix is shown below. Do the same operations on the other two Half-Adders

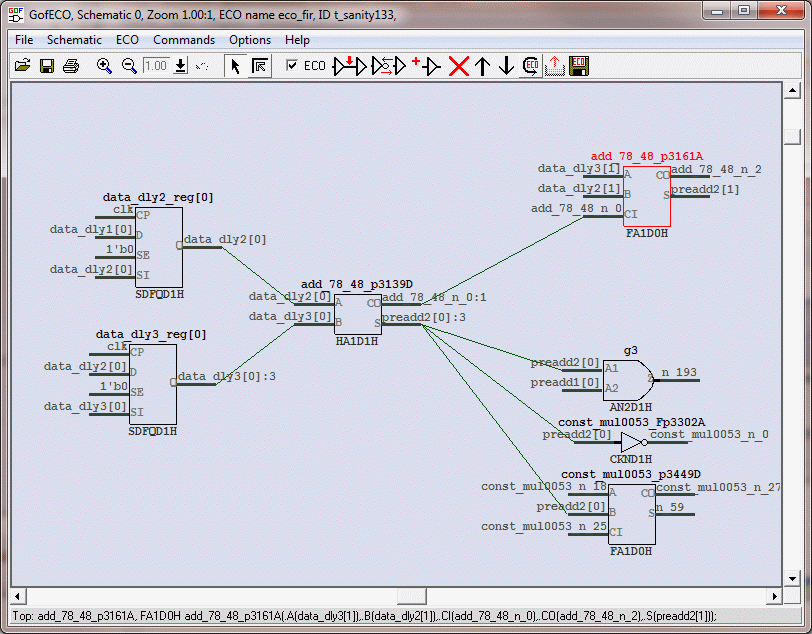

Figure 6. Three Half Adders under ECO

GofCall script

Using 'change_pin' API in GofCall script is even more efficient

  my @adders = qw(add_76_48_p2408D
                  add_77_48_p3164A
                  add_78_48_p3139D
                );

  my $inv = "CKND1H";
  my $or = "OR2D1H";
  foreach my $add (@adders){
    change_pin("$add/S",  $inv, "", "-");
    change_pin("$add/CO", $or,  "", "$add/A,$add/B");
  }
  write_verilog("man_eco_dpath_fc.vg");

Manual vs Auto ECO comparisons

The initial logic cone has 223 gates. Manual ECO only uses 6 new gates. Apply automatic GofCall ECO script listed above, 14 new gates are added

GOF adds 14 gates into the logic to fix the bug.



Summary

Datapath ECO is very complicated. Pure manual ECO is possible in some special cases, though it has better performance than automatic ECO. In most cases, datapath ECO has to be done by automatic way that Gates On the Fly provides.
