Automatic Metal Only ECO


This use case demonstrates how to perform a metal-only ECO automatically.

The setup is identical to that of the Automatic Functional ECO case, with the added step of mapping any new gates exclusively to spare gates.

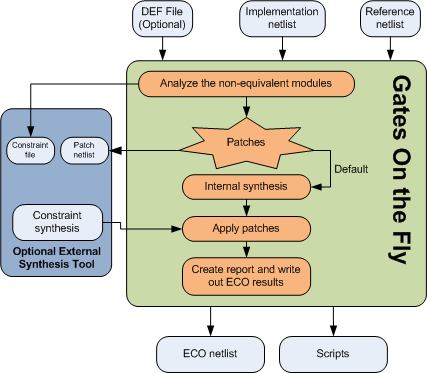

Flow Chart

To perform functional ECO, users provide the Implementation netlist that requires modification, as well as a Reference netlist that has been re-synthesized following RTL modification. Additionally, a DEF file may be used to provide physical information.

Utilizing a top-down and global approach, the Internal Logic Equivalent Check engine analyzes the design to identify non-equivalent modules and determine the minimum logic patches required to modify the Implementation netlist during functional ECO. Upon completion of the ECO, the spare gates list is extracted from the Implementation netlist, and the logic patches are mapped exclusively to spare-type gates.

Metal Only ECO Script

# GofCall ECO script,
# Any new gates added will be mapped to spare gates
use strict;
undo_eco;  # Discard previous ECO operations
# Setup ECO name, had better be unique to avoid naming confliction

read_library("art.90nm.lib"); # Read in standard library
read_svf("-ref", "reference.svf.txt");       # Optional, must be loaded before read_design, must be in text format
read_svf("-imp", "implementation.svf.txt");  # Optional, must be loaded before read_design, must be in text format

read_design("-ref", "reference.gv");  # Read in the Reference Netlist
read_design("-imp", "implementation.gv");  # Read in the implementation Netlist Which is under ECO

set_top("topmod"); # Set the top module that ECO has been done in the module and its sub-modules
read_def("topmod.def"); # Read Design Exchange Format file, optional.
# Fix the module 'topmod' and its sub-modules
# Now we need to map all new added ECO gates to spare type instances
# Specify spare cell pattern, when 'map_spare_cells' is done,
# a new updated spare list file will be written out.
# The updated spare list file has default name 'spare_cells_script_name.list'.
# Click 'get_spare_cell' below for more usage detail
# Comment the above line and use the following line to use spare list file
# if the spare list file has been generated already and gone through other ECOs
# get_spare_cells("-file", "spare_list_file.txt");
# To use external Synthesis Tool
# Use RTL Compiler by the following option
# map_spare_cells("-syn", "rc");
# Use Design Compiler by the following option
# map_spare_cells("-syn", "dc_shell");
report_eco(); # ECO report
write_verilog("eco_verilog.v"); # Write out ECO result in Verilog
write_soce("eco_soce.tcl"); # Write out TCL script for SOC Encounter
exit; # Exit when the ECO is done, comment it out to go to interactive mode when 'GOF >' appears


Run the Script

The above script can be run by '-run' option in GOF command line:

gof -run
