A Practical Way to Do Netlist ECO & Debug

Automatic Functional ECO Partial Mode

Abstract

The use case shows how to automatically fix a design in partial mode. When design is large, it's time consuming to run ECO from the most top level and it may bring redundant fixes. If all RTL changes are contained in one sub-module and its hierarchical instances, the top level module can be set to the sub-module, and run 'fix_design' on that sub-module.

Partial Mode

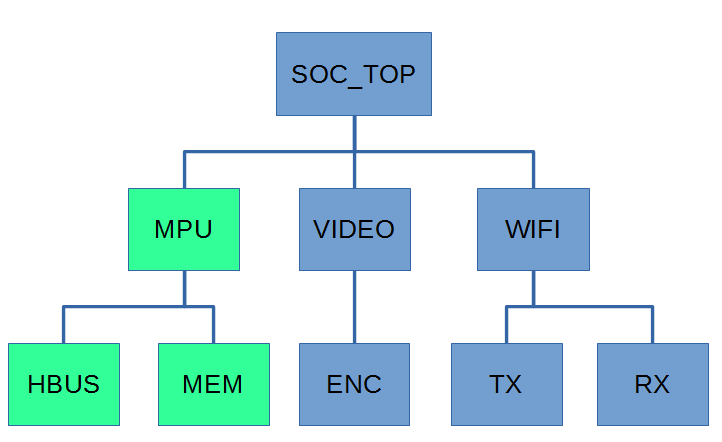

If design is large and ECO run time becomes too long, there is potentially a way to improve the speed. For a design shown in the following chart, if RTL changes are known to be contained inside module 'MPU' and its sub-modules, 'HBUS' and 'MEM', the top level can be set on 'MPU' and 'fix_design' can run much faster.

Automatic ECO Script

# GofCall ECO script, auto_eco.pl
use strict;
undo_eco;  # Discard previous ECO operations
setup_eco("eco_example");  # Setup ECO name
read_library("art.90nm.lib"); # Read in standard library

# Read in the Reference Netlist which is re-synthesized with several modules modified
read_design("-ref", "reference.gv");
# Read in the implementation Netlist Which is under ECO
read_design("-imp", "implementation.gv");

set_top("MPU"); # Set the top module on MPU instead of the most top SOC_TOP
# Fix the top module MPU and its sub-modules, HBUS and MEM
fix_design;

report_eco();  # ECO report
write_verilog("eco_verilog.v"); # Write out ECO result in Verilog
write_soce("eco_soce.tcl"); # Write out TCL script for SOC Encounter

exit; # Exit when the ECO is done, comment it out to go to interactive mode when 'GOF >' appears

Run the Script

The above script can be run by '-run' option in GOF command line:

gof -run auto_eco.pl

An example in released package

The example is in the released package.

To run the example:

cd GOF/example
run_example
