Run GofCall in GUI mode

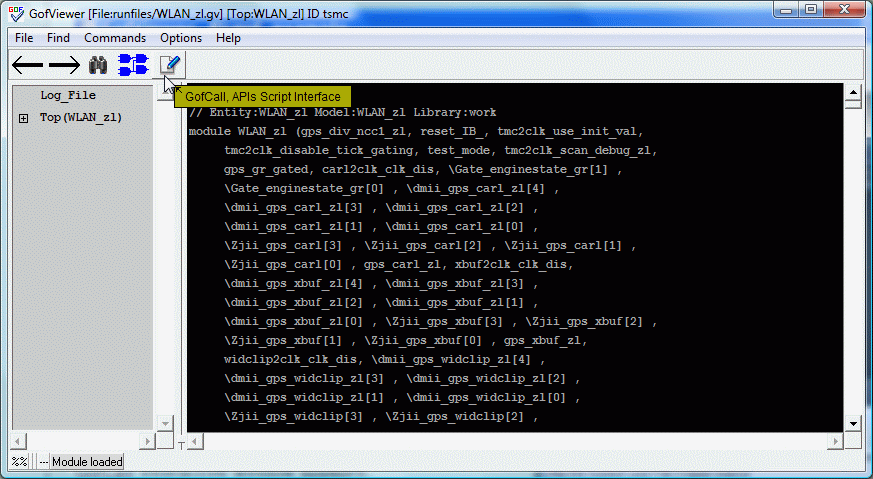

In GofViewer window, click Menu Commands->'Launch GofCall Script Interface'

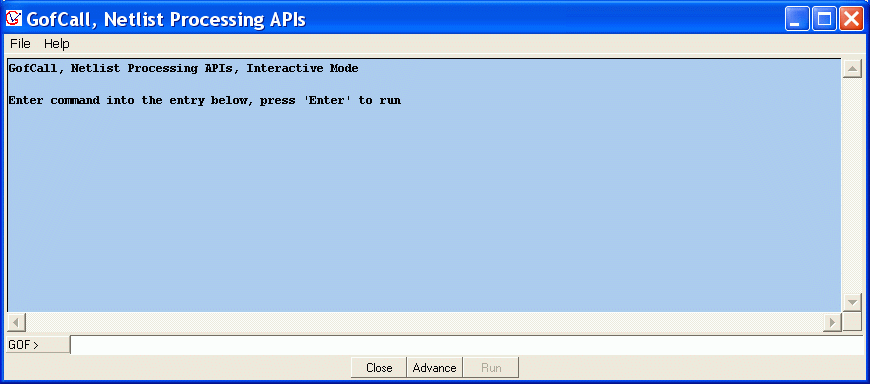

GofCall interactive window appears.

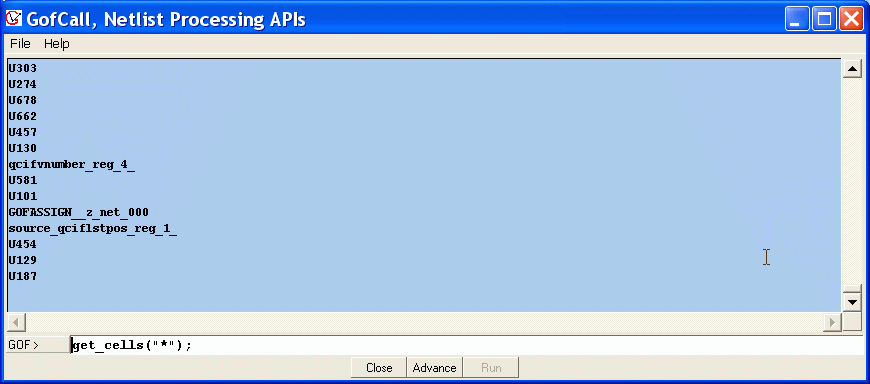

In the "GOF >" entry, key in GofCall APIs to browser the netlist. For example, key in 'get_cells("*")' and press return, the instances in the current top level are displayed.

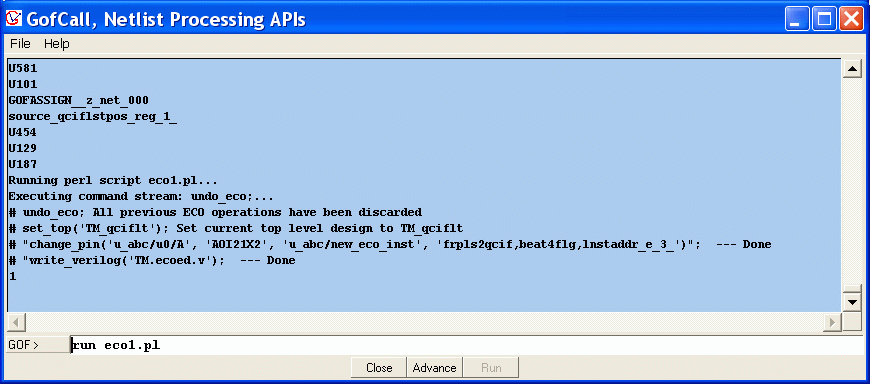

Key in "run eco1.pl" to run ECO script in batch mode. eco1.pl has content of

undo_eco;
set_top("TM_qciflt");
change_pin("u_abc/u0/A", "AOI21X2", "u_abc/new_eco_inst", "frpls2qcif,beat4flg,lnstaddr_e_3_");
write_verilog("TM.ecoed.v");


You can verify if the ECO has been done correctly be launch schematic in ECO mode.

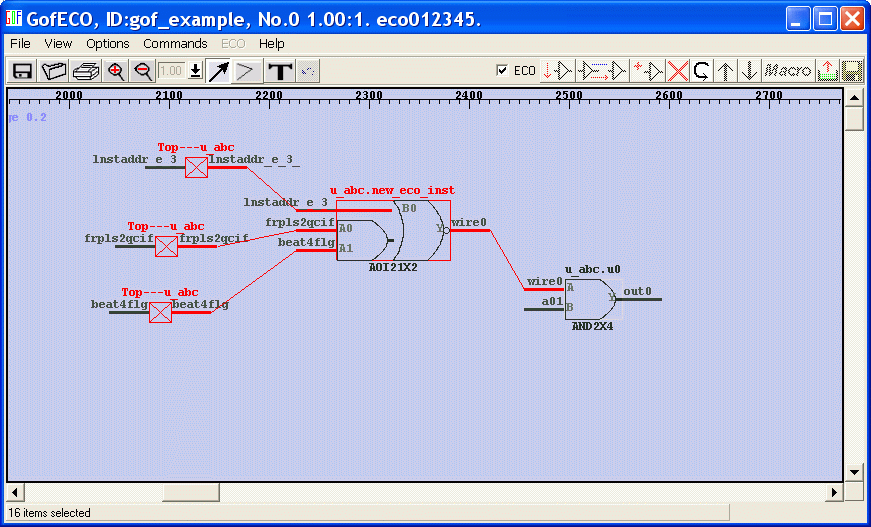

 Key in "sch u_abc/u0" and return. The schematic window pops up for tracing.

All the marked items are created by the one ECO line

change_pin("u_abc/u0/A", "AOI21X2", "u_abc/new_eco_inst", "frpls2qcif,beat4flg,lnstaddr_e_3_");
