Auto Place and Route

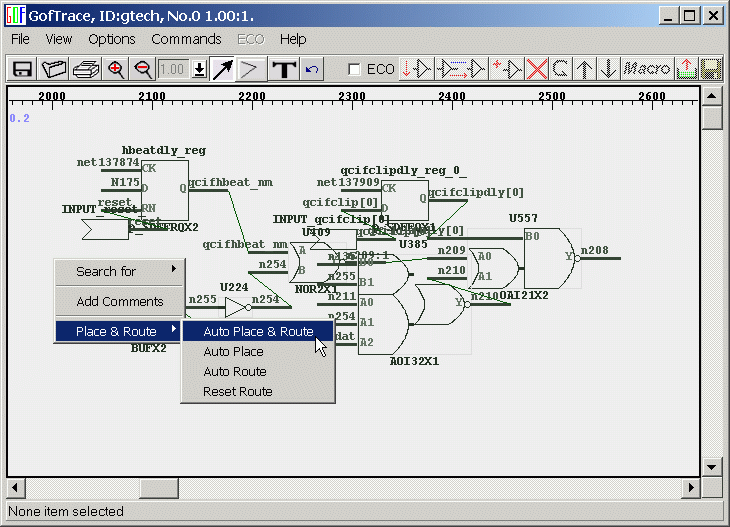

- You can do placement and route at same
time, when the gates on the schematic are messing around. Use 'Auto
Place & Route' command.

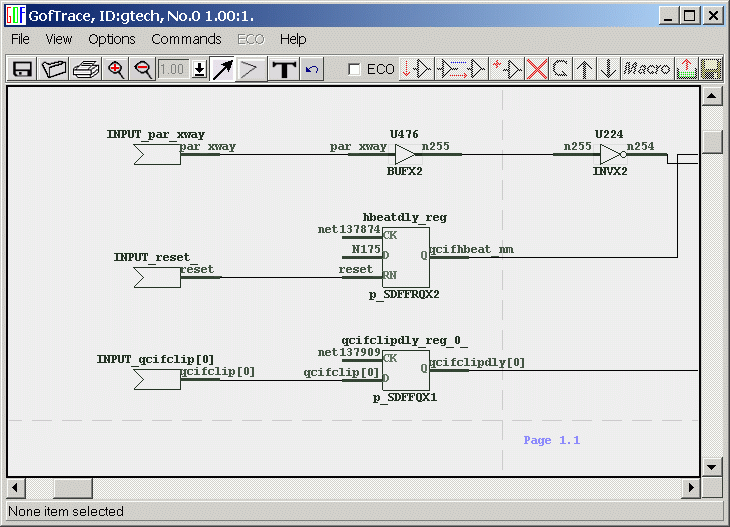

	- All gates are placed to the right positions and wires are straighten out.

	- Input Ports and the start driving gates are normally placed on the left side for easy
	tracing.
