Functional ECO in a 2 Million Gate Design

Managing a functional Engineering Change Order (ECO) in a high-density design is a high-stakes balancing act. In this scenario, we are dealing with a 2 million gate design where a single signal needs to be re-routed.

The RTL Difference

The change is deceptively simple: instead of tying r0 to a constant high value, it now needs to track bit [1] of the disp_data bus during a specific case.

  2'b01: begin
      if (disp_data[17:13] == 5'h1f)
-         r0 = 1'b1;
+         r0 = disp_data[1]; // eco replacing 1'b1;
      else
          r0 = 1'b0;

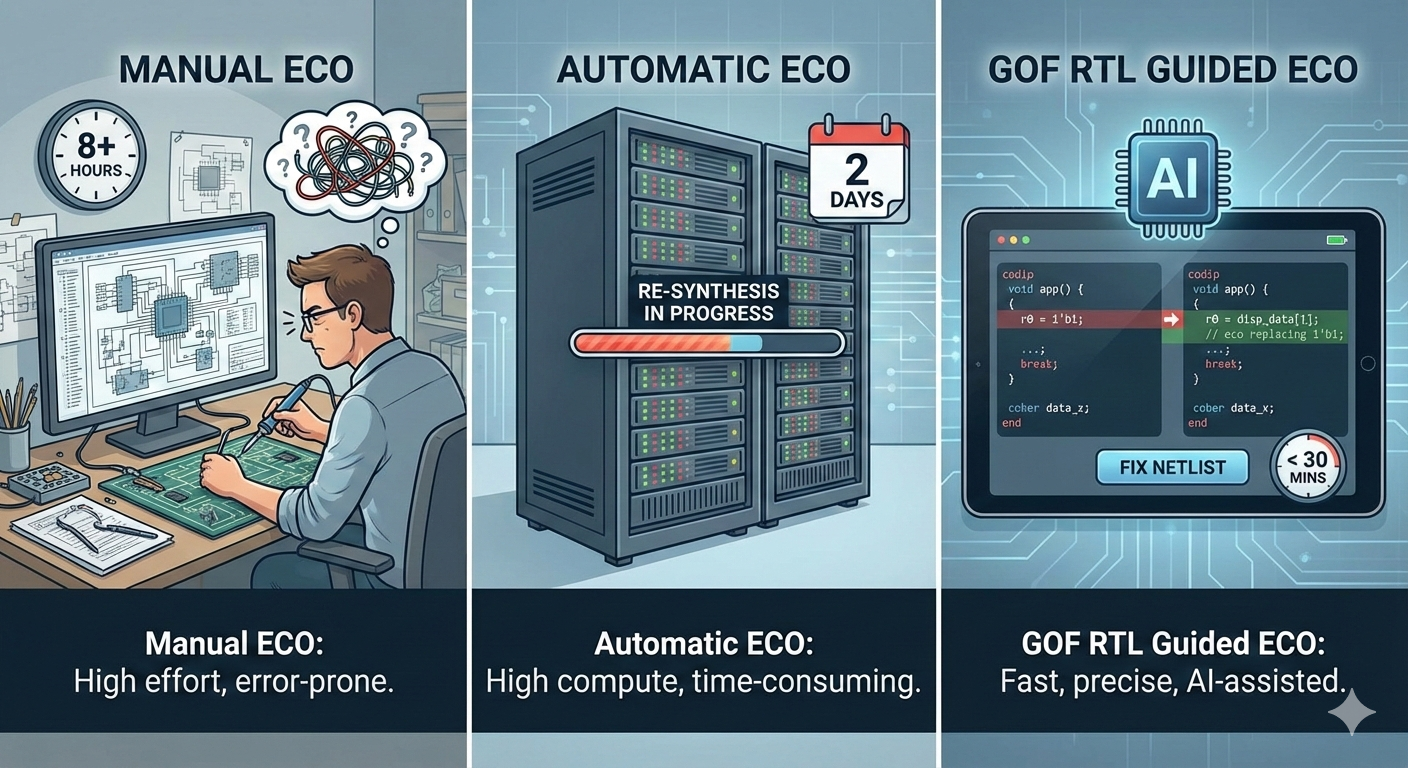

Comparison of ECO Methods: Manual vs Automatic vs GOF RTL Guided

Choosing Your Strategy

1. Manual ECO: The "Search and Rescue" Mission

Using a schematic tool to find the exact gate driving r0 inside a 2-million gate netlist is like looking for a needle in a haystack—while the haystack is on fire.

Time: ~8 hours.
Risk: High. Tracing logic through thousands of hierarchy levels is exhausting and incredibly error-prone.

2. Automatic ECO (Standard EDA Tools)

Most EDA tools require a full re-synthesis to understand the RTL change before they can attempt to patch the netlist.

Time: ~2 days (Re-synthesis: 24h+, ECO run: several hours).
Risk: Low, but the schedule hit is massive for such a tiny logic change.

3. GOF RTL Guided ECO (The "Smart" Choice)

GOF utilizes the RTL diff shown above to perform a surgical strike. It identifies the exact gates that need to be swapped and completes the task in under 30 minutes.

Automation in Action

By providing the tool with both the original and modified RTL, GOF automates the comparison and the netlist fix:

read_library("../lib/tsmc3nm.lib");
read_rtl('-ref', 'modified_rtl.sv');
read_rtl('-imp', 'original_rtl.sv');
set_top('the_chip_top');
rtl_compare;
read_design("-imp", "netlist_under_eco.v");
set_top("the_chip_top");
fix_design();

For those who prefer a conversational interface, GOF AI makes it even simpler:

gofai do rtl guided eco original rtl original_rtl.sv modified rtl modified_rtl.sv netlist netlist_under_eco.v top module the_chip_top

The result? A verified, gate-level patch delivered before your second cup of coffee is cold.
